Accelerate Edge AI Development with NVIDIA Jetson

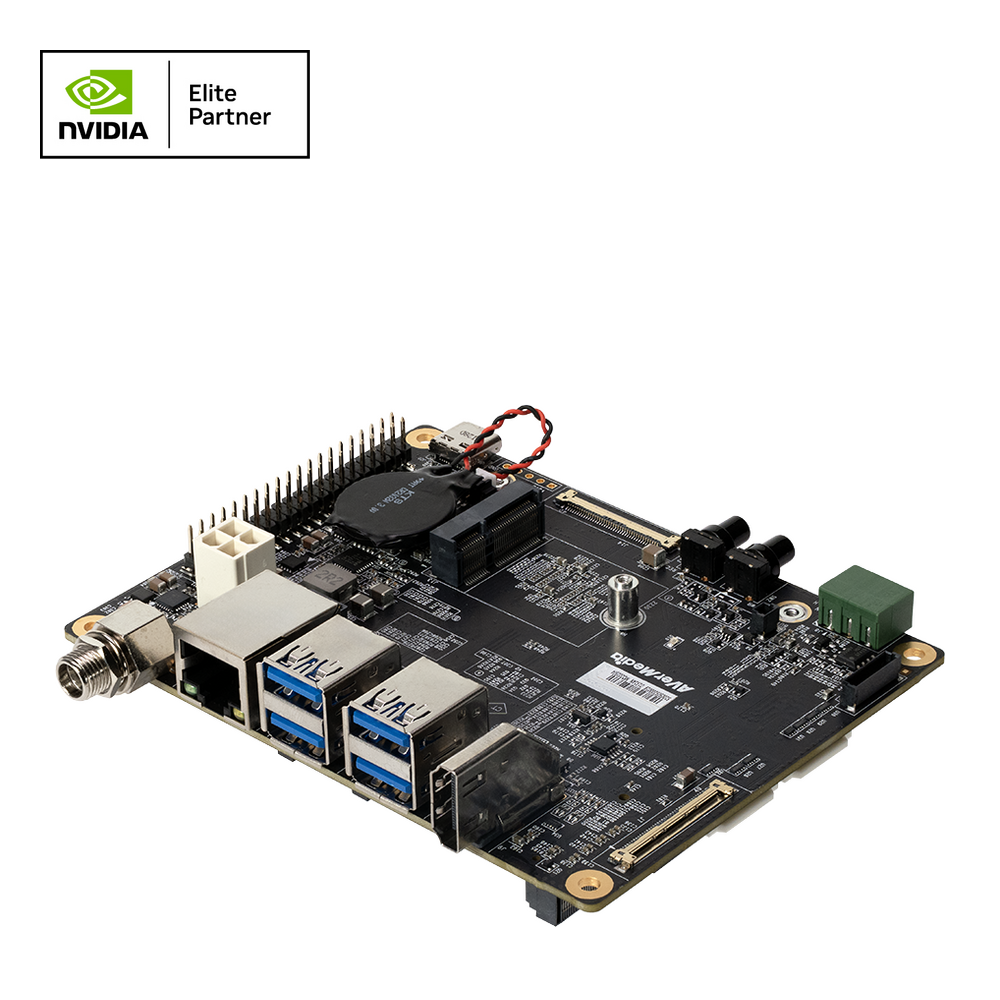

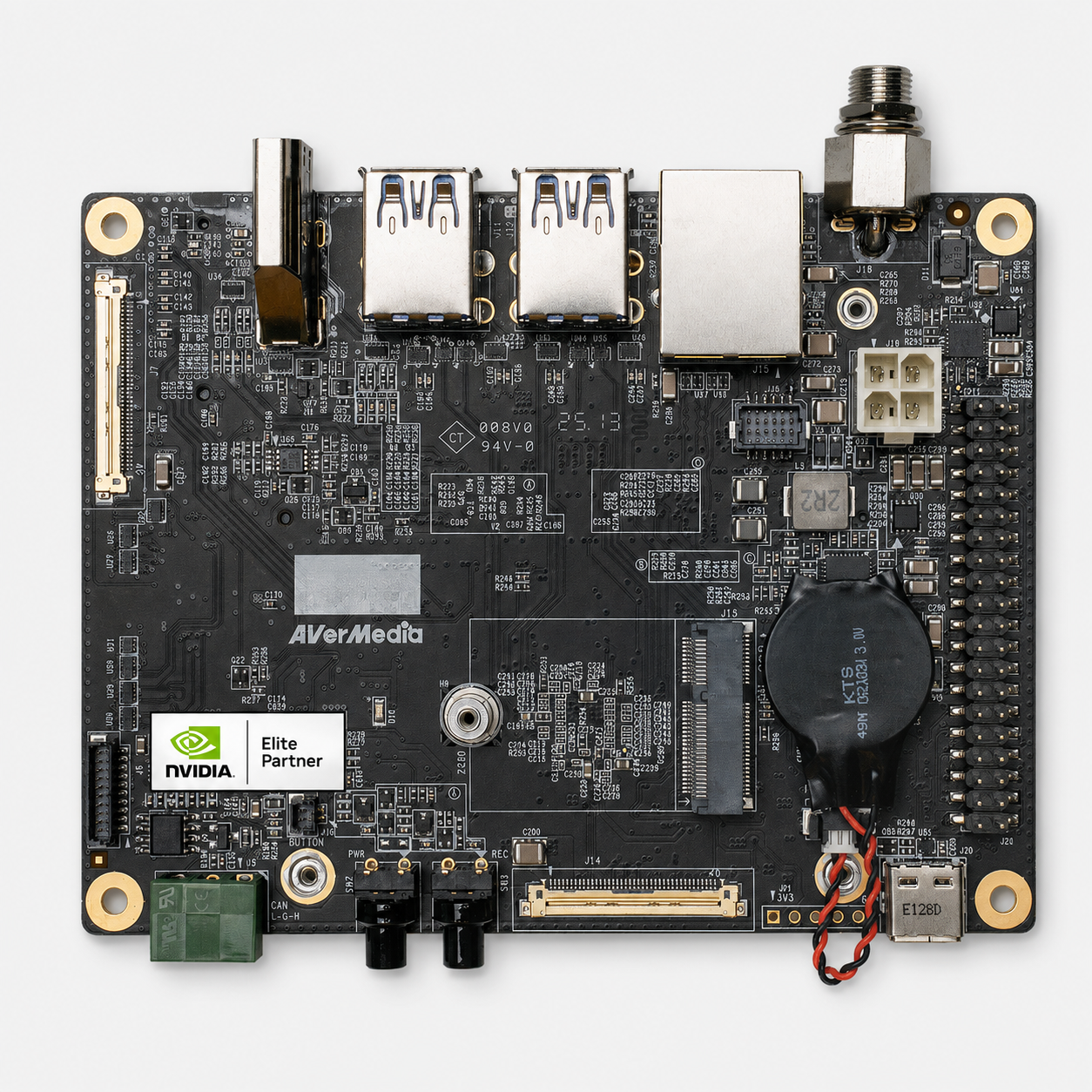

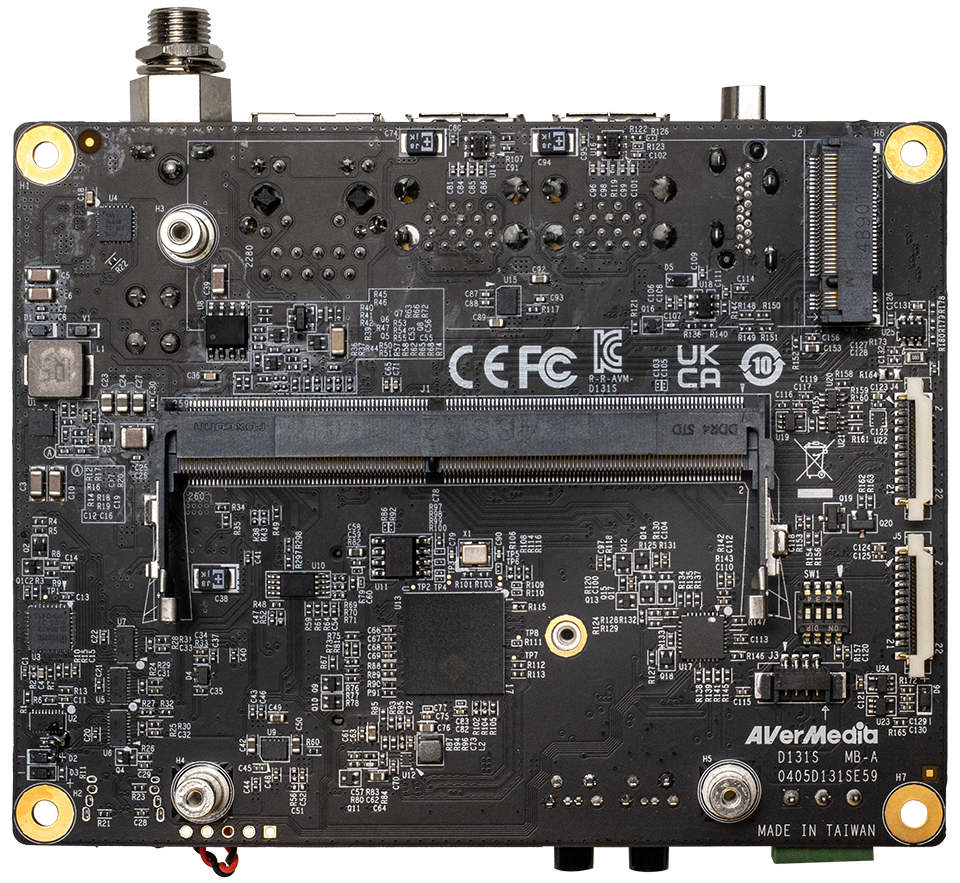

The AVerMedia D131S is a compact carrier board designed for NVIDIA® Jetson Orin™ NX and Jetson Orin Nano™ modules, including Super Mode support. Its flexible I/O, camera connectivity, storage expansion, and industrial operating options make it an adaptable platform for developing and deploying edge AI applications.
Key Features
• NVIDIA Jetson compatibility: Supports Jetson Orin NX and Orin Nano modules with Super Mode
• Dual camera inputs: Two 4-lane MIPI CSI-2 interfaces for vision-based AI applications
• Flexible M.2 expansion: M.2 Key E 2230 for Wi-Fi and M.2 Key M 2280 for SSD or compatible expansion
• High-speed connectivity: Four USB 3.2 Type-A ports and one Gigabit Ethernet port
• Expandable networking: Optional PoE, 5G, DisplayPort, and out-of-band management daughter boards
• 4K display output: Up to 4K60 through HDMI with Orin NX or 4K30 with Orin Nano
• Industrial deployment options: Available in commercial and wide-temperature industrial versions
• Secure platform design: TPM 2.0 support and Allxon-enabled remote monitoring, control, and OTA deployment
Designed for Edge AI Applications
D131S provides the connectivity and expansion needed for autonomous mobile robots, smart security, machine vision, smart inspection, and other embedded AI solutions. Its compact 113 × 105 mm footprint helps developers integrate Jetson AI computing into space-constrained systems.
Technical Specifications
Model: D131S
Product type: Carrier board
Compatible modules: NVIDIA Jetson Orin NX and Orin Nano
Super Mode: Supported
Camera inputs: 2 × 4-lane MIPI CSI-2, 22-pin FPC, 0.5 mm pitch
Display output: 1 × HDMI; up to 3840 × 2160 at 60 Hz with Orin NX or 30 Hz with Orin Nano
Optional display: DisplayPort through an optional DP daughter board
Networking: 1 × Gigabit Ethernet RJ-45; optional PoE
Wireless expansion: 1 × M.2 Key E 2230 for Wi-Fi
Storage/expansion: 1 × M.2 Key M 2280
USB: 4 × USB 3.2 Type-A; 1 × USB 2.0 Type-C for recovery
Security: TPM 2.0 supported
Power input: DC 12–24 V; 10 A maximum
Dimensions: 113 × 105 mm / 4.45 × 4.13 in
Net weight: 101 g / 0.223 lb
Operating Temperature Options
D131S-001 Industrial Type: −40°C to 85°C / −40°F to 185°F
D131S-002 Commercial Type: 0°C to 70°C / 32°F to 158°F
Package Contents
• AVerMedia D131S carrier board
• Mounting screws
Important Compatibility Notice
NVIDIA Jetson module, storage, Wi-Fi module, antennas, thermal solution, power adapter, cameras, cables, and optional daughter boards are not included unless expressly stated in the selected configuration. Although the board contains a microSD slot, Jetson Orin NX and Orin Nano modules do not support its microSD function.
