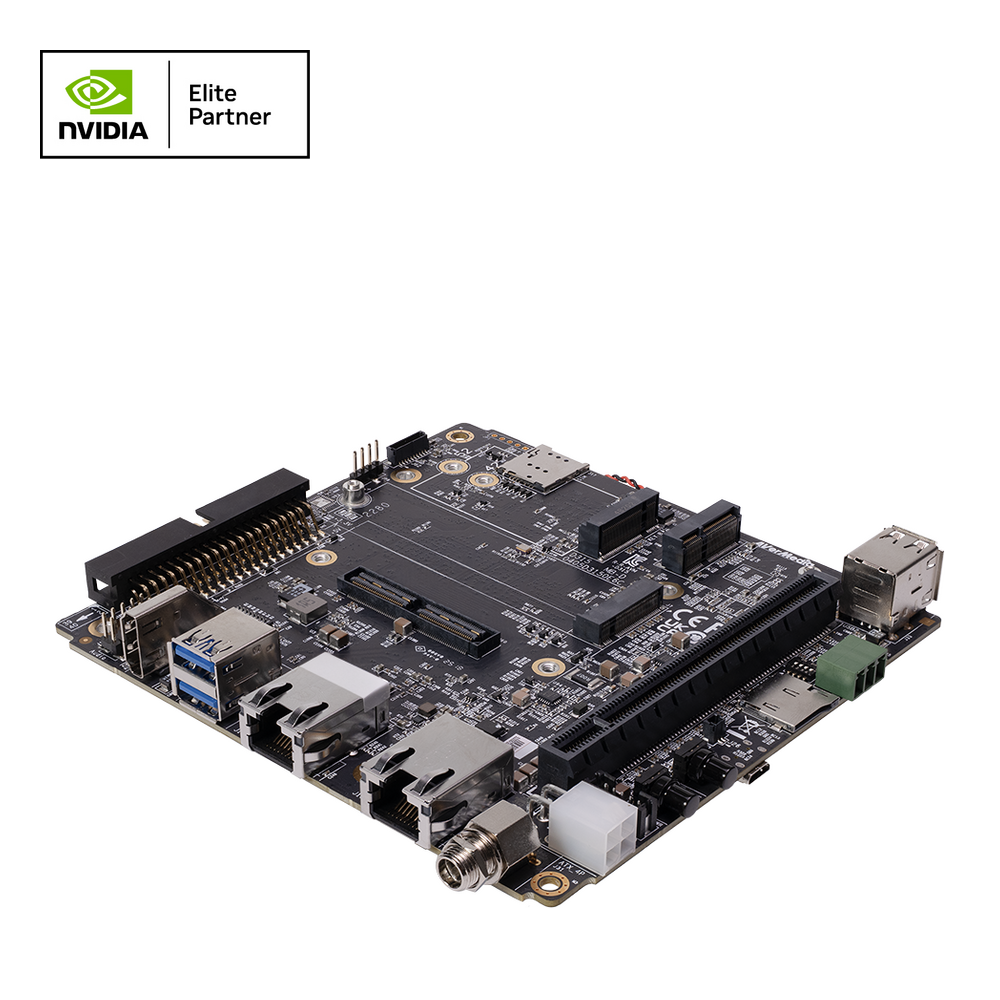

The AVerMedia Carrier Board D315-2 supports NVIDIA® Jetson AGX Orin & AGX Orin Industrial modules, delivering next-level AI performance and power-efficient capabilities for autonomous machines. With its compact footprint and robust expansion options, it is designed to handle demanding embedded IoT applications across varying environments.
Key Features
-
Camera Integration: 120-pin high-speed connector for MIPI SerDes cameras (GMSL2 / FPD-link III / V-by-One® HS) to seamlessly deploy in AMR applications.
-
High-Speed Networking: 1x GbE & 1x 10G RJ-45 Ethernet ports, providing sufficient bandwidth for dozens of IP cameras streaming simultaneously in smart security setups.
-
Extensive Expansion: 1x M.2 B key (for 4G & 5G), 1x M.2 E key (for Wi-Fi 6E), and 1x M.2 M key (for SSD and capture). Includes 10GigE Vision camera connector and 1x PCIe slot for multi-function expansion.
-
Industrial Durability: Built for tough environments with an extended operating temperature range of -40°C to 85°C.
-
Advanced Compatibility: Supports StereoLabs ZED Link Capture Card (Quad) and Out-of-Band (OOB) full functionality.
-
Compact Design: Dimensions of 141.5mm(W) x 133.5mm(L) x 29mm(H).
Ideal Applications
-
Autonomous Mobile Robots (AMRs): Rapid, flexible adjustment for working processes utilizing live camera feeds.
-
Smart Security: Real-time video analysis to improve community safety.
-
Smart Inspection: Fast and accurate detection to improve production quality control.
